DBX 215S Streo 15 Band Equlaiser
0 yorum
Marka
Stok Kodu
WZQ4VVDZB6
Fiyat
450,00 USD + KDV
Havale
10.319,40 TL
(%2,00 havale indirimi)
*1.102,40 TL den başlayan taksitlerle!
21.060,00 TL
10.530,00 TL
%50

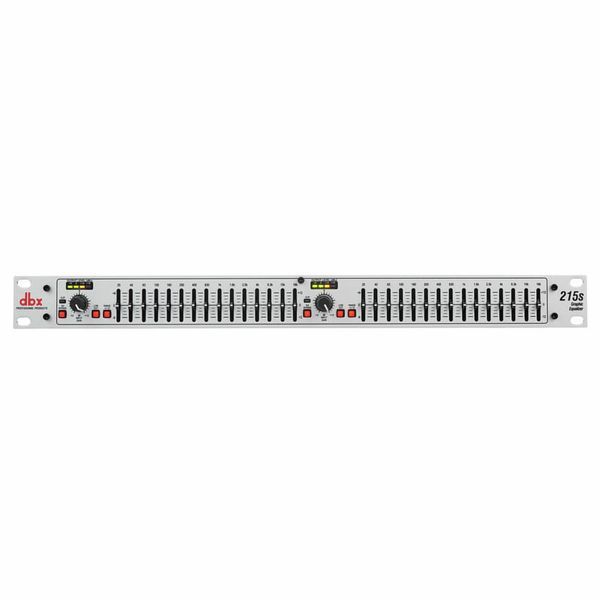

215s Çift Kanal 15 Band Equalizer
Teknik Özellikler:
- Input Connectors 1/4" TRS, female XLR (pin 2 hot)
- Input Type Electronically balanced/unbalanced, RF filtered
- Input Impedance Balanced 40 kOhm, unbalanced 20 kOhm
- Max Input >+21dBu balanced or unbalanced
- CMRR >40dB, typically >55dB at 1kHz
- Output Connectors 1/4" TRS, male XLR (pin 2 hot)
- Output Type Impedance-balanced/unbalanced, RF filtered
- Output Impedance Balanced 100 ohm, unbalanced 50 ohm
- Max Output >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
- Bandwidth 20Hz to 20kHz, +0.5/-1dB
- Frequency Response <10Hz to >50kHz, +0.5/-3dB
- Dynamic Range Typically >112dB
- Signal to Noise Ratio Typically >95dB
- THD+Noise <0.003%
- Interchannel Crosstalk <-90db, 20Hz to 20kHz
- Bypass Switch Bypasses the graphic equalizer section in the signal path
- Low cut Switch Activates the 50Hz 12dB/octave Bessel high-pass filter
- Range Switch Selects either +/- 6dB or +/- 12dB slider boost/cut range
- Operating Voltage 100VAC-240VAC 50/60Hz
- Power Consumption 15W
- Power Connector IEC receptacle
- Unit Weight 4.8 lbs.(2.2 kg)
- Shipping Weight 6.2 lbs.(2.8kg)
- Dimensions 1.75" (4.4cm) H x 6"(15.24cm) D x 19" (48.26cm) W
