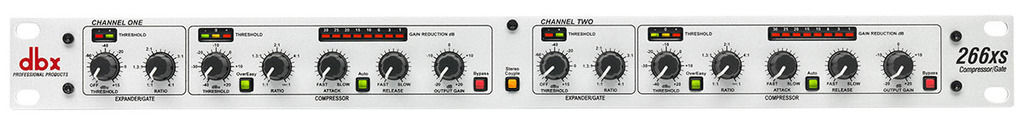

DBX 266 XS Compressor - Gate Sinyal İşleyici
0 yorum
Kategori
Marka
Stok Kodu
G66TGWBL37
Fiyat
360,00 USD + KDV
Havale
7.525,22 TL
(%2,00 havale indirimi)
*2.136,43 TL den başlayan taksitlerle!
15.357,60 TL
7.678,80 TL
%50
Teknik Özellikler:
- Input Connectors 1/4" TRS and female XLR (pin 2 hot)
- Input Type Electronically balanced/unbalanced, RF filtered
- Input Impedance 40kΩ balanced/unbalanced
- Max Input >+22dBu Balanced or Unbalanced
- Output Connectors 1/4" TRS, female XLR (pin 2 hot)
- Output Type Impedance-balanced/unbalanced, RF filtered
- Output Impedance +4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced
- Max Output >+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)
- Sidechain 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
- Sidechain Impedance Tip = >10kΩ (Input), Ring = 2kΩ (Output)
- Sidechain Max Input Level Tip = >+22dBu (Input)
- Sidechain Max Output Level Ring = >+20dBu (Output)
- Compressor Threshold Range -40dBu to +20dBu
- Compressor Threshold Characteristic Selectable OverEasy® or hard knee
- Compressor Ratio 1:1 to Infinity:1
- Compressor Attack Time Scalable Program-Dependent AutoDynamic™
- Compressor Release Time Scalable Program-Dependent AutoDynamic™
- Expander/Gate Threshold Range -60dBu to +15dBu
- Expander/Gate Ratio 1:1 to 4:1
- Expander/Gate Attack Time <100µs
- Expander/Gate Release Time Program-dependent
- Bandwidth 0.35Hz - 90kHz, +0/-3dB
- Frequency Response Flat: 20Hz-20kHz, +0, -0.5dB
- Noise <-93dBu unweighted (22kHz measurement bandwidth)
- THD+Noise Typically <0.2%; Any Amount of Compression @1kHz
- IMD Typically <0.2% SMPTE
- Dynamic Range >114 dB, unweighted
- Interchannel Crosstalk <-95dB, 20Hz to 20kHz
- CMRR >40dB, typically >55dB at 1kHz
- Stereo Coupling True RMS Power Summing™
- Power Consumption 15 Watts Maximum
- Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
- Operating Temperature 0°C to 45°C (32°F to 113°F)
- Dimensions 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm )
- Unit Weight 4.84 lbs (2.19 kg)
- Shipping Weight 6.6 lbs (2.99 kg)
- Reference 0dBu = 0.775Vrms
