FBT J 5 A 5'' 2 Yollu 80+40W Aktif Hoparlör
FBT J 5 A 5" 2 Yollu 80+40W Aktif Hoparlör
Ürün Özellikleri

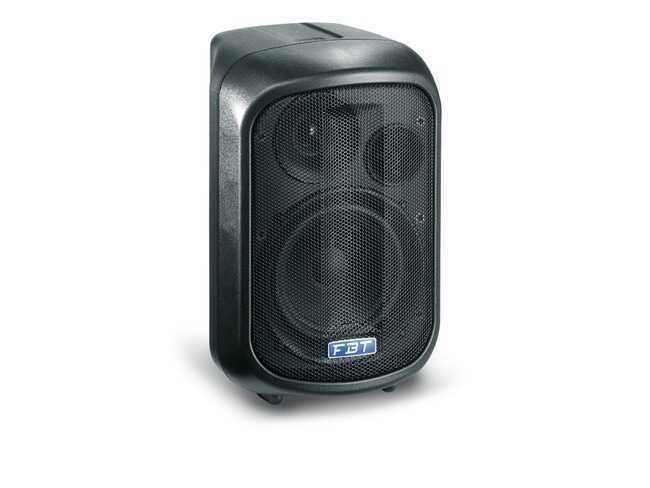

The FBT J5A series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction.
Available in black or white finish the FBT J5A series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. The asymmetrical shape of the FBT J5A cabinet also allows use as a powered floor stage monitor.
The FBT J5A is of two way design incorporating an 5" low frequency woofer and 1" HF custom compression driver coupled to a 90°H x 90°V horn. The active internal crossover is at a fixed frequency of 3.5kHz. With a frequency range of 80Hz - 20kHz the FBT J5A speaker provide high fidelity sound for both speech and music applications with a maximum SPL of 117dB. A front face steel grille protects the speaker from external damage.
The bi-amplified FBT J5A active speaker feature a 80W RMS low frequency amp and a 40W RMS high frequency amp. The control panel features a level control, HP filter switch, mic/line selector, led power on, protection led indicator, a balanced Neutrik input combo-jack, balanced XLR link out.
The two M6 fly points built into the cabinet along with the optional mounting brackets allow the FBT J5A speaker to be surface mounted on walls or ceilings. A standard 1,38" speaker stand socket allows the FBTJ5Ato be mounted on speaker stand.
Teknik Özellikleri
2 yönlü işlenmiş aktif sistem
Polipropilen muhafaza
1 x 5" özel woofer
1 x 1" neodimiyum ipek kubbe tweeter
60W/30W dahili amplifikatör RMS LF/HF
80W/40W dahili amplifikatör maks. RMS LF/HF
160W/80W dahili amplifikatör maks. tepe LF/HF
2 x M6 süspansiyon noktası
Düşük gürültülü toroidal transformatör güç kaynağı
Beyaz renkte mevcutturYapılandırma: 2 Yollu
Frekans yanıtı: 80Hz - 20 kHz
Düşük frekanslı woofer: 1" VC ile 5"
Yüksek frekans sürücüsü: 1" Dome Tweeter
Maksimum SPL sürekli/tepe: 113 / 117 dB
Dağılım: 90 x 90 (YxV)
Giriş empedansı: 22 Kohm
Geçiş frekansı: 3.5kHz
Giriş konektörü: Bağlantı çıkışlı XLR/Jack Combo soket
Net Boyut (GxYxD): 170 x 275 x 180 mm / 6,69 x 10,82 x 7,08 inç
Net Ağırlık: 3.4kg / 7.49lb
Taşıma Boyutları (GxYxD): 240 x 345 x 235 mm / 9,44 x 13,58 x 9,25 inç
Taşıma Ağırlığı: 4.2kg / 9.25lb
AC Güç gereksinimleri: 75VA
Dahili amplifikatör LF/HF: 80/40w RMS
Dahili amplifikatör tepe noktası LF/HF: 160/80w
Güç kablosu: 5m IEC
Tamamen İtalya'da üretilmiştir
