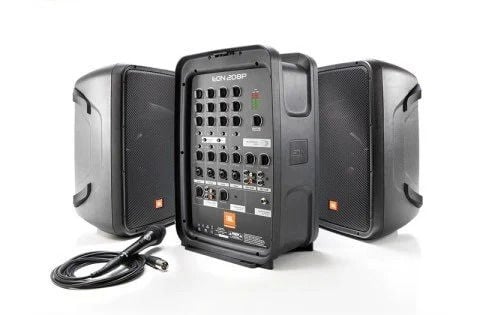

JBL EON 208P Portatif 600 Watt Portable Set

System Type Portable 2-way full-range loudspeakers with powered mixer

Maximum SPL Output 121 dB peak

Frequency Range (-10 dB) 60 Hz - 20 kHz

Frequency Response (+/-3 dB) 70 Hz - 18 kHz

AC Input 100-120 V, 220-240 V 50/60 Hz

Amp Design Class D

System Power Rating 300 W (2x 150 W stereo)

Output Connector 2 x 1/4" TS (unbalanced) amplifier outputs

Channels 1-4: XLR/1/4" jack combo connectors

5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo)

7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack

Phantom Power CH1 and CH2 have phantom power control and share the same selection switch

Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input

Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)

Headphone Out: 3.5mm stereo jack

Subwoofer Out: 1/4" balanced TRS jack

Treble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost

System Limiter On-board DSP limiting

LF Driver 1x JBL 8" (203mm) woofer

HF Driver 1x 1" Neodymuim black aluminum dome tweeter

Coverage Pattern 100° horizontal x 60° vertical

Crossover Frequency 2 kHz

Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave)

Enclosure Polypropylene

Suspension/Mounting 36 mm pole socket

Handles One on top

Speaker Grille Powder-coated perforated steel

Shipping Package（HxWxD） 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)

Net Weight 38.8 lbs (17.6 kg)
